M-DOT-M6: 6-fields touch panel module with a display MDOT-M4, MDOT-M4+

  • Document number: PO-003-EN
  • Version: 1.0.1
  • Date of publication: April 8, 2022

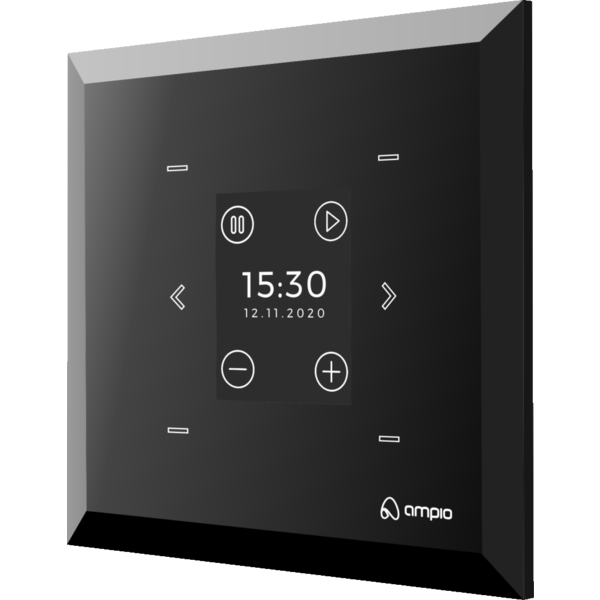

The image above is for illustration purpose only. The actual module may vary from the one presented here.

Technical data

Supply voltage
11 — 16V DC
Idle current consumption
25mA
Maximum current consumption
30mA
Number of sensor fields
6

Technical data cont.

1-Wire
up to 6 sensors
Buzzer
yes
Display size
2"

Dimensions

Width
90mm*
Height
90mm*
Depth
22mm

Environment

Temperature
-20 — 50°C
Humidity
≤95%RH, non-condensing

* The exact dimensions of the module depend on the variant of the glass edge finish selected when placing an order.


General features

Module M-DOT-M6 is a component of the Ampio system. Required voltage to power the module is 11 — 16V DC. The module is controlled via CAN bus.

The module has six sensor fields, a display supporting the functionality of swipeable screens, and a 1-Wire interface.

Sensor fields

The touch panel sensor fields are capacitive buttons located behind the glass pane, which is the front of the module. Each sensor field is marked with a symbol engraved on the glass surface.

The condition for triggering an action associated with a given field can be pressing, holding, double-pressing, etc. A single field can initiate multiple actions depending on how it is triggered.

Each sensor field is illuminated by an RGB diode, which allows one to define any backlight colour. The backlight can be constant or change during the system operation, signalling the status of devices associated with the field, or any other information available in the building automation system.

The brightness of both, the symbols and the status LEDs, can be modified. The panel has a proximity sensor, thanks to which it is possible to define a weaker backlight when there is no interaction with the panel, and a stronger one, which gets activated when one brings a hand close to the panel.

Display with swipeable screens

The module is equipped with a 2" LCD display and supports the functionality of swipeable screens. It allows one to define a number of configurations of symbols presented on the display within individual screens. swipeable between the screens is done using the sensor fields in the middle row of the panel, while the functionality of the upper and lower fields may be different for each screen and is described by the symbol shown on the display located near the field.

The colour of the symbols that define the corner sensor fields can be modified to indicate the status of associated devices or any other information available within the building automation system.

The central part of the screen presents any information available in the building automation system, e.g. date and time, or temperature measurement results. Each swipeable screen can show different information.

If the installation includes an IP integration module from the M-SERV family, it is possible to display on the panel information downloaded from the network, e.g. weather, stock information, etc.

The module can support 2 or 12 swipeable screens, depending on the version purchased.

The 12-screen module, apart from the screens described above, also enables the activation of the following types of screens:

  • information screen,
  • countdown timer screen.

Information screen

The information screen is divided into three sections, which facilitate presenting any information available in the building automation system, e.g. date and time or temperature measurement results. There are no symbols describing the sensor fields on this type of screens.

Countdown timer

The screen implements the countdown timer functionality. When this type of screen is active, the corner panel buttons are used to define the time, stop and start the countdown, and reset it. The end of the countdown is signaled by default with an acoustic signal. It is also possible to perform any action within the devices connected to the building automation system.

Personalisation

The colour of the module’s front glass and the chamfer width of its edge are subject to personalisation.

In the case of the M-DOT-M6 module, the symbols of the sensor fields are not subject to personalisation.

Buzzer

The module is equipped with a buzzer that enables generating sound signals. By default, each press of the sensor field triggers a short buzzer sound. However, this behaviour can be modified.

In addition to confirming that the sensor field has been pressed, the buzzer can be used to signal any other events observable by the building automation system. The sound volume and type are defined at the device configuration stage.

Temperature sensors

The module is equipped with a 1-Wire interface connector that allows to connect up to 6 digital Dallas DS18B20 temperature sensors. The temperature measurement result is available for all devices operating within the building automation bus. It may turn out to be particularly useful for purposes related to temperature regulation, or to present the measurement result on touch panels and in a mobile application.

The total length of the 1-Wire bus cable to which the temperature sensors are connected cannot exceed 15m.

Module with an aluminum finish

M-DOT-M6 module with an aluminium finish is unavailable until further notice.

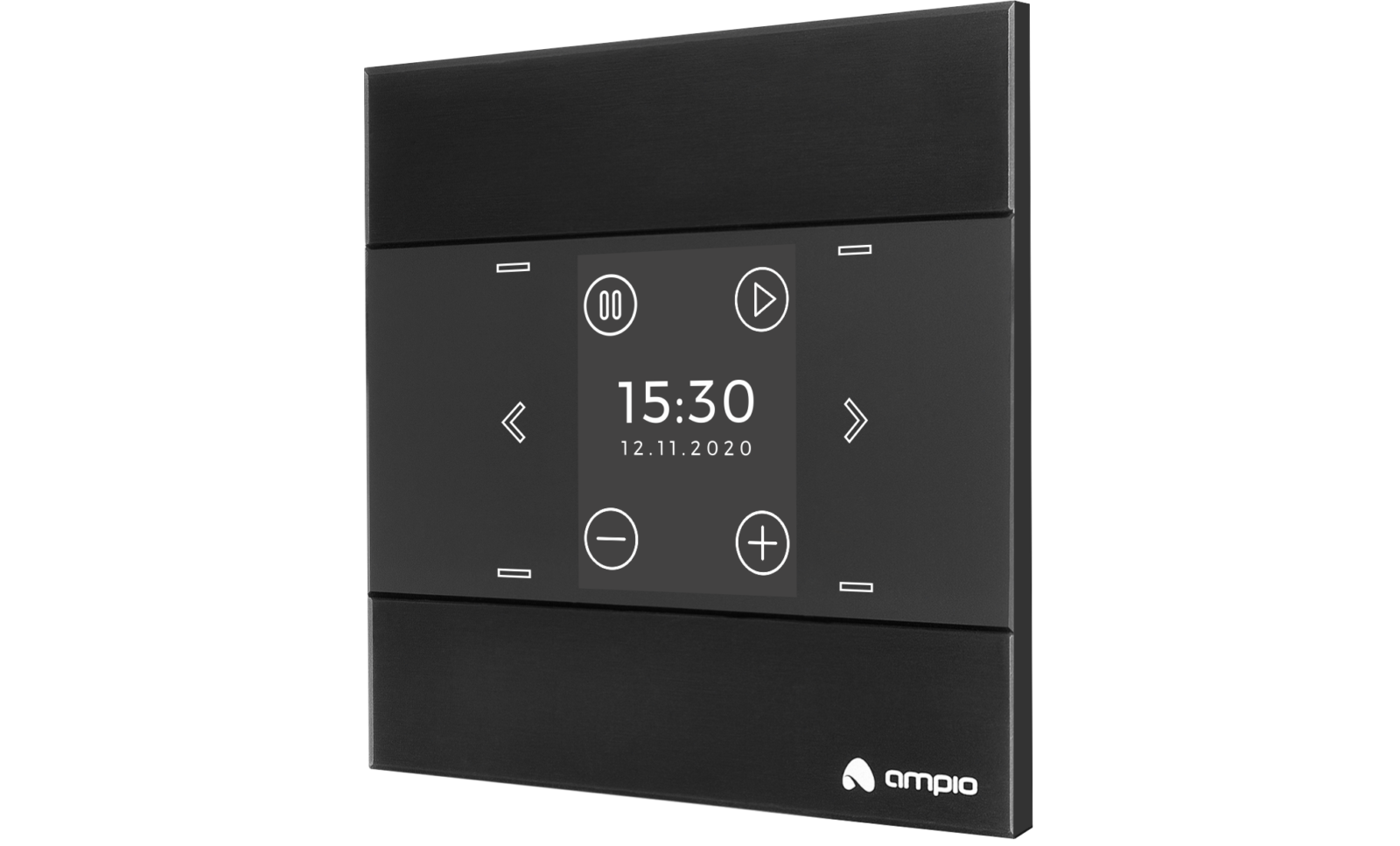

The M-DOT-M6 touch panel module is also available with an aluminum front. In this variant, the screen and sensor fields are located behind the pane of smoked glass without a chamfered edge, embedded in an aluminum frame. The aluminum frame can be made of raw aluminum or it can be black anodised.

The M-DOT-M6 module with an aluminum finish supports up to 10 swipeable screens.

Dimensions of the module with an aluminum finish

In the dimensions diagram, the dashed line marks the area where connectors of the device and its other elements protruding from the body are located. The outline of this area corresponds to the central opening in mounting plates and frames for touch panels. In the actual module, the CAN bus and 1-Wire interface connectors may be located in a different place than in the figure below, but within the marked area.

Dimensions expressed in millimeters.

The following dimension diagram is for the M-DOT-M6 module with an aluminum finish. A drawing of the module dimensions in the regular variant can be found further in the document.

Click to enlarge and open in a new tab.

Typical application

  • Turning on lighting or any other devices connected to the building automation system;
  • informing about the state of lighting or other devices;
  • generating sound notifications that inform about events observed by the system;
  • temperature measurement in rooms;
  • presentation of information on the screen, e.g.:
    • date and time,
    • values of readings of sensors installed in the building automation system,
    • RDS radio station name of the M-AV-AMP-s module,
    • information downloaded from external APIs by a module from the M-SERV family, such as the weather, commuting time, stock quotes, etc.

Installation

The panel can be mounted on a surface or it can be flush with the wall surface. Depending on the expected effect, a flush mounting plate or surface mounting frame is used. The frames are available in two variants - for panels with glass with and without chamfered edges.

Both in the case of flush and surface mounting, a standard junction box must be located behind the panel, inside which there will be connectors for the CAN bus and the 1-Wire interface. In the case of flush mounting, the box must be embedded in the wall at a greater than standard depth.

A detailed description of the installation of panels in both variants is available in the appropriate installer guides published on the Ampio knowledge base website.

Device status LEDs

On the back of the device, there is one red LED indicating the communication status within the CAN bus:

  • one regular flash every 1 sec. – CAN bus communication is working properly,
  • two regular flashes every 1 sec. – the module is not receiving information from other smart modules,
  • three regular flashes every 1 sec. – the module cannot send information to the CAN bus;

After the device is embedded in the mounting plate or frame, the LED is hidden.

Programming

The module is programmed with the use of the Ampio Designer software. It allows you to modify the parameters of the module and define its behaviour in response to signals directly available to the module as well as general information coming from all devices present in the home automation bus.

Module dimensions

Dimensions expressed in millimeters.

The panel consist of a glass front and a body with connectors and mechanical interfaces meant for mounting with the use of mounting plates or surface frames. The body is mounted in the center of the rear surface of the glass front with a margin of error appropriate for the production process.

The exact dimensions of the module front depend on the variant of the glass edge finish selected when placing an order.

In the dimensions diagram, the dashed line marks the area where the connectors of the device and its other elements protruding from the body are located. The outline of this area corresponds to the central opening in mounting plates and frames for panels. In the actual module, the CAN bus and 1-Wire interface connectors may be located in a different place than in the figure below, but within the marked area.

Click to enlarge and open in a new tab.

Connection diagram

The location of the device connectors on the connection diagram is indicative - in the physical module their location may be different.

Click to enlarge and open in a new tab.
