The following example shows a method of setting up an automated pool cleaning schedule to activate the cleaning every Sunday at 9:00 am. In order to achieve that, you will need 2 modules:

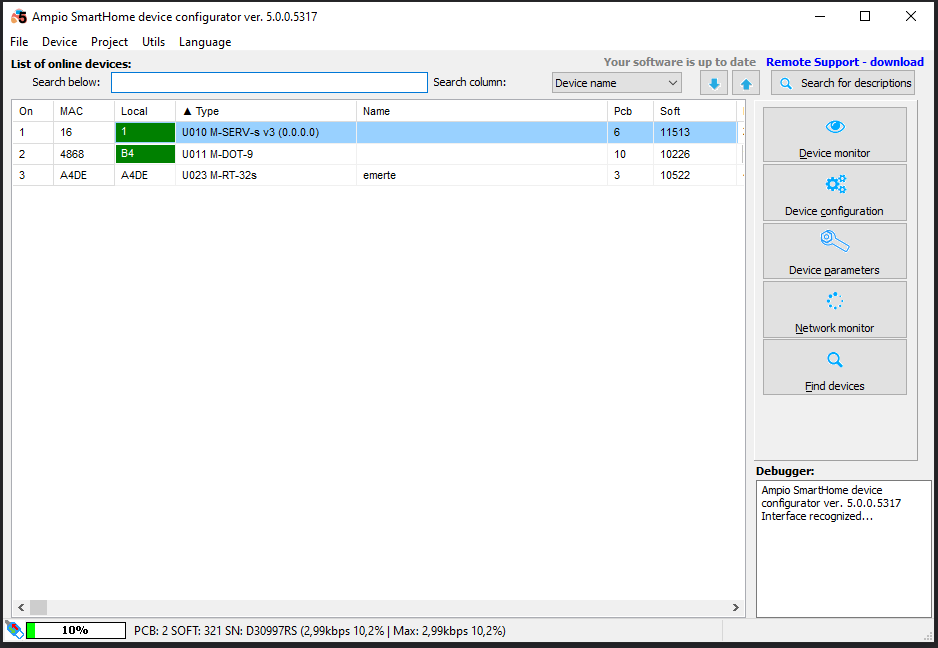

In the Ampio Smart Home configurator, select the M-SERV-s from the list and open its Device configurator.
Click to enlarge and open in a new tab.

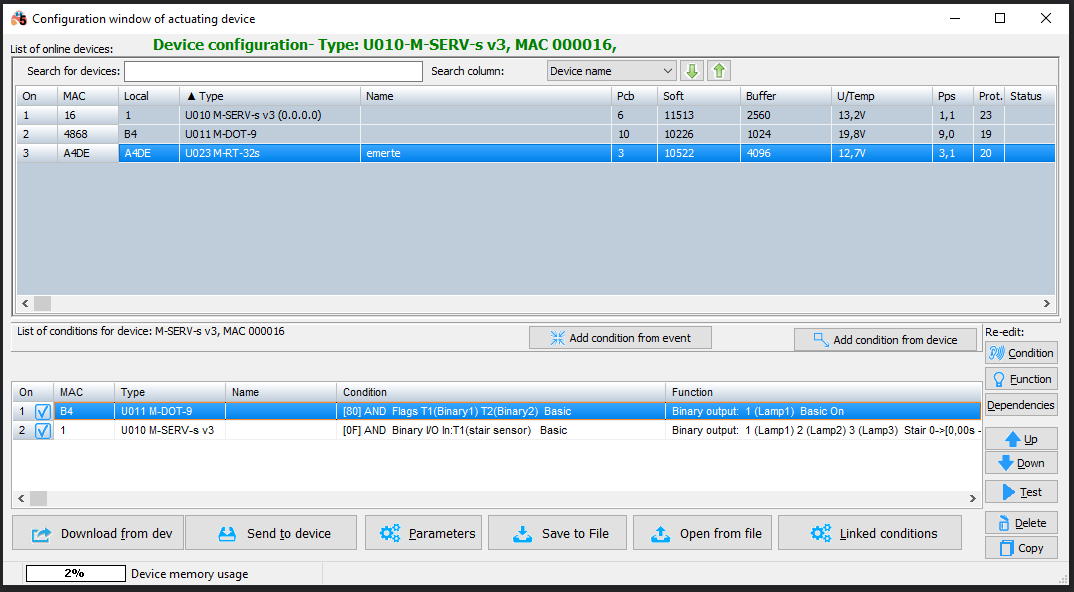

From the modules list, select M-RT-s and create a new condition from device.
Click to enlarge and open in a new tab.

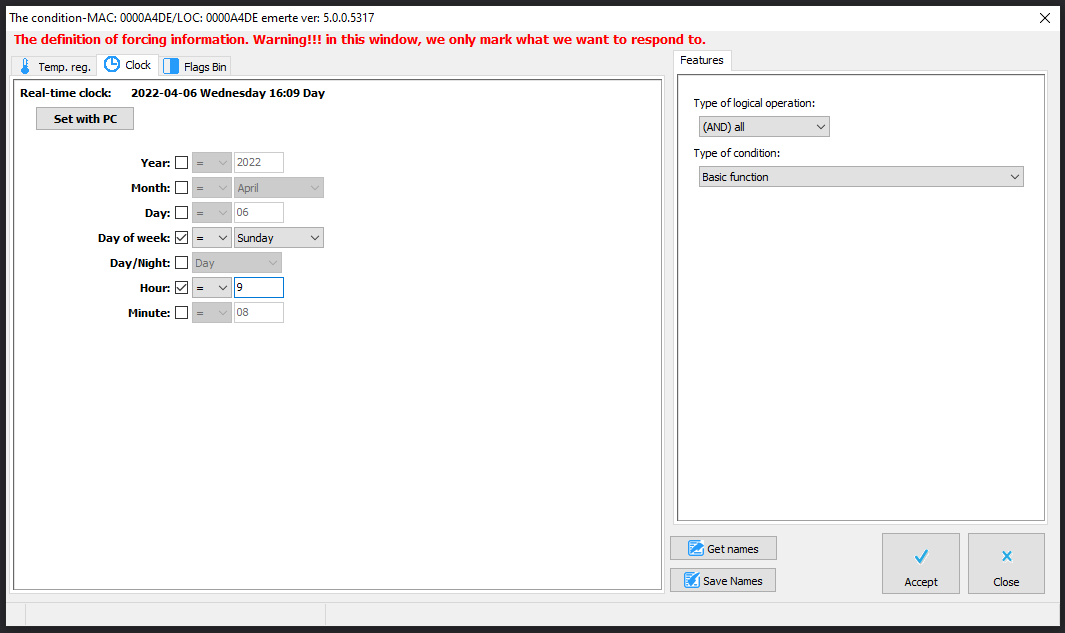

Then, go to the Clock tab. Set the Day of week to Sunday, and Hour to 9. Confirm.
Click to enlarge and open in a new tab.

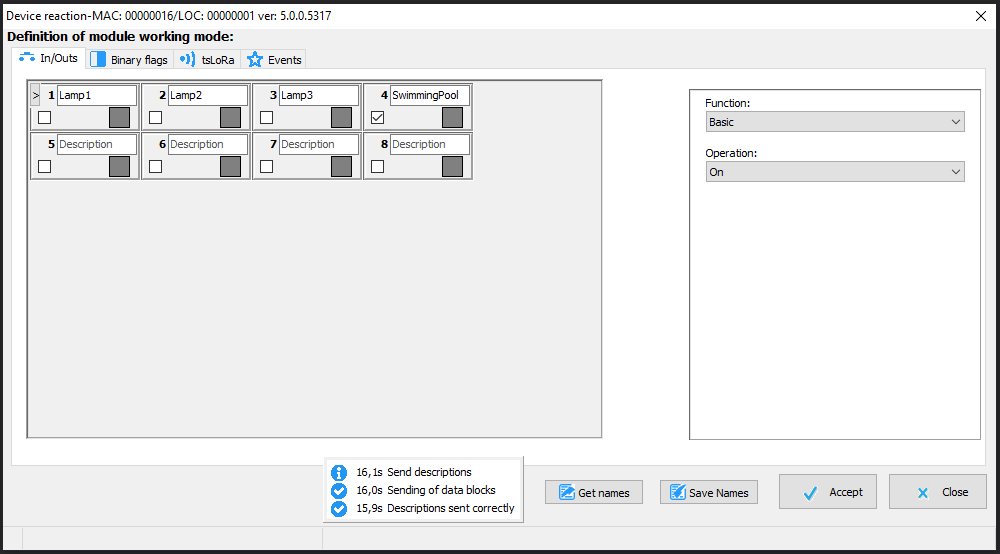

Select the output to which the pool cleaner pump is connected. Pick the Basic Function and Operation On. Confirm.
Click to enlarge and open in a new tab.
At the end of setting conditions, send them to the device. From now on, the swimming pool will be automatically cleaned at 9 o’clock on Sundays.
