To add a Fakro roller shutter controlled wirelessly according to the Z-wave standard, use the M-CON-ZWAVE-s module.

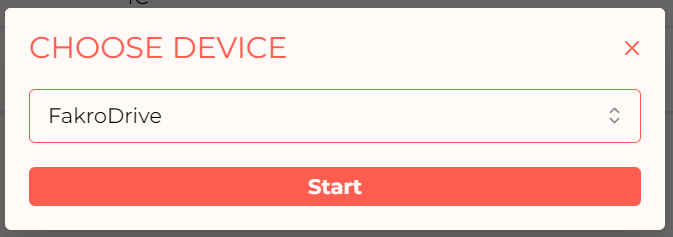

The first step is to add a new roller shutter to the M-CON-ZWAVE-s module. To do this, in the Devices tab, go to Settings of the M-CON-ZWAVE-s module (cog icon) and select the ZWAVE tab. Then select the + icon in the top right corner and from the drop down list select FakroDrive and press Start.
Click to enlarge and open in a new tab.
Add the roller shutter to the control unit according to the manufacturer’s instructions. Once correctly added, it will appear in the list with a shortened address.
Click to enlarge and open in a new tab.

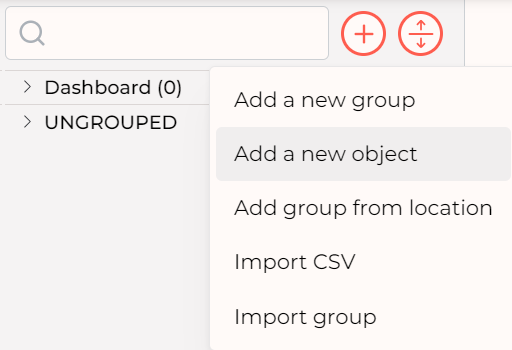

Next, add a new object in the APPLICATION tab.
Click to enlarge and open in a new tab.

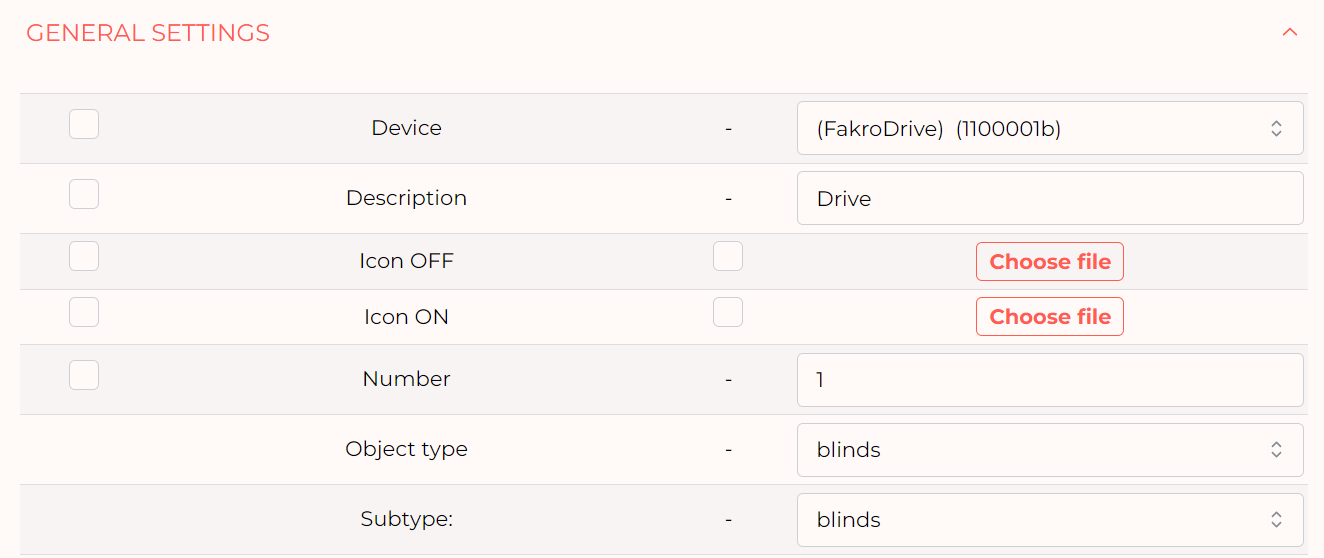

In the object settings, select the full address with the same suffix as the roller shutter received after it had been added, and set Object Type to Roller shutter. Confirm the object set in this way by pressing Save in the top right corner.
